TUV Aseptic Filling And Cappign Machine GMP Standard Serum And Medium

Name: TUV Aseptic Filling And Cappign Machine GMP Standard Serum And Medium
Brand: PERWIN
Price: 60000 USD

TUV Aseptic Filling And Cappign Machine GMP Standard Serum And Medium Manufactures

Brand Name : PERWIN

Model Number : PW-GX515

Certification : CE SGS ISO9001 TUV

Place of Origin : Jiangsu China

MOQ : 1set

Price : 60000~80000

Payment Terms : T/T

Supply Ability : 5sets/month

Delivery Time : 60~90 working days

Packaging Details : Export wooden cases

Product name : GMP standard serum and medium aseptic filling and cappign machine

Filling Range : 30ml, 60ml, 125ml, 500ml, 1000ml

Filling Method : Peristaltic pump or Ceramic pump

Filling Accuracy : ±1~2%

Capacity : 20~30 bottles per minute (500ML)

Contact Now

TUV Aseptic Filling And Cappign Machine GMP Standard Serum And Medium

1. Brief introduction

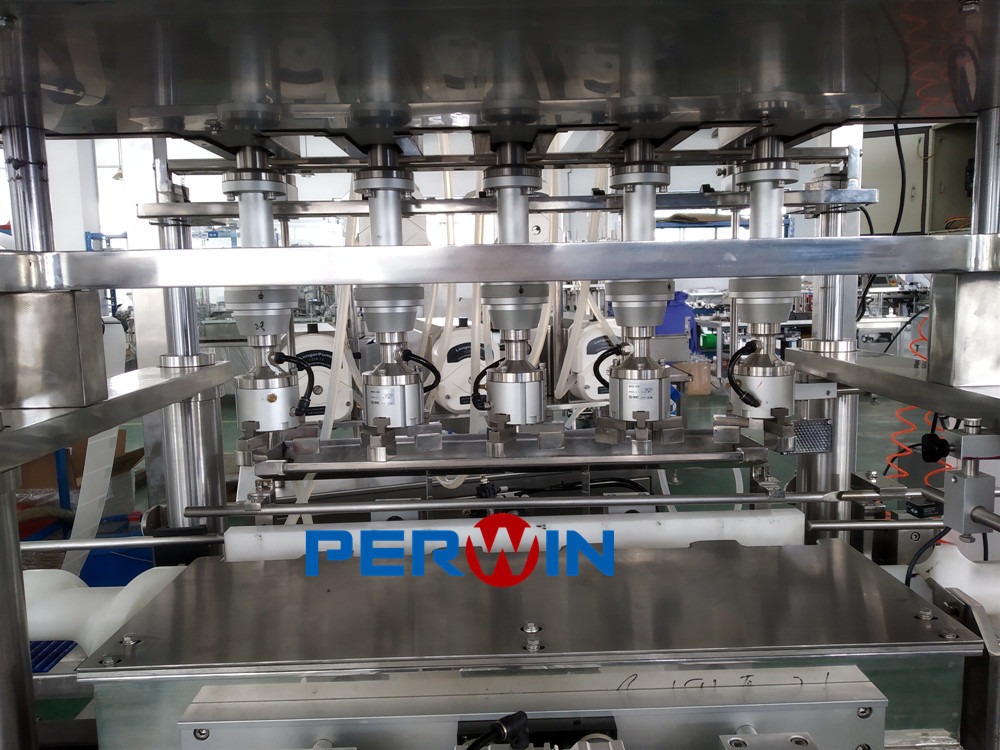

Automatic Aseptic Serum Filling Machine with HEPA Filter was designed by our own company with automatic bottle feed in platform, servo drive bottle separating and positioning, bottle transported to aseptic environment, unscrew the bottle cap, filling and capping, shrink sleeve labeling, shrinking, labeling and final packing into box(optional). This production line stable running speed is around 20 bottles/min.

It is specially designed for 30ml, 60ml, 125ml, 500ml and 1000ml square bottles.

TUV Aseptic Filling And Cappign Machine GMP Standard Serum And Medium

2. Parameters

Item	Model and Specification
Model	PW-GX515
Filling Range	30ml, 60ml, 125ml, 500ml, 1000ml (Use 500ml pump to fill twice)Up to client’s requirement
Filling Method	Five sets of double channels peristaltic filling.Each set is driven by servo separately.
Filling Accuracy	±1~2%
Capacity	15~20 bottles per minute (500ML)
Power Supply	110V 60Hz(can be customized)
Power	3KW 2.0Kw
Compressed Air	0.4~0.7Mpa 25~35L/min

3. Main configuration:

Items	Brand	From
PLC	Siemens	Germany
Frequency converter	Schneider	France
Color touchscreen	FUJI	Japan
Photoelectric sensor	OMRON	Japan
Pneumatic components	AirTAC,CHELIC For (SMC or Festo, please check optional)	Taiwan
