Tube De-capping Filling Capping and Labeling Machine for Nucleic Acid Assay IVD Kit

Place of Origin : Jiangsu, China

Brand Name : PERWIN

MOQ : 1

Price : $58,000-68,000

Machinery capacity : 1200BPH

Voltage : AC Three-Phase 380V

Dimension : 5200*1450*2400mm

Filling accuracy : ±1~3%

Filling range : 50ul~1000ul

Filling speed : 1200bph

Filling method : 1 set of peristaltic pump

De-capping method : Servo motor control

Capping method : Cam-driven mechanical arm

Torque control : Servo motor control

Labeling accuracy : ±0.5mm

Production capacity : 20~25pcs/min

Compressed air : 0.4~0.8Mpa

Weight : 2000 KG

Core components : Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Gearbox, Engine, HMI

Contact Now

Product Overview

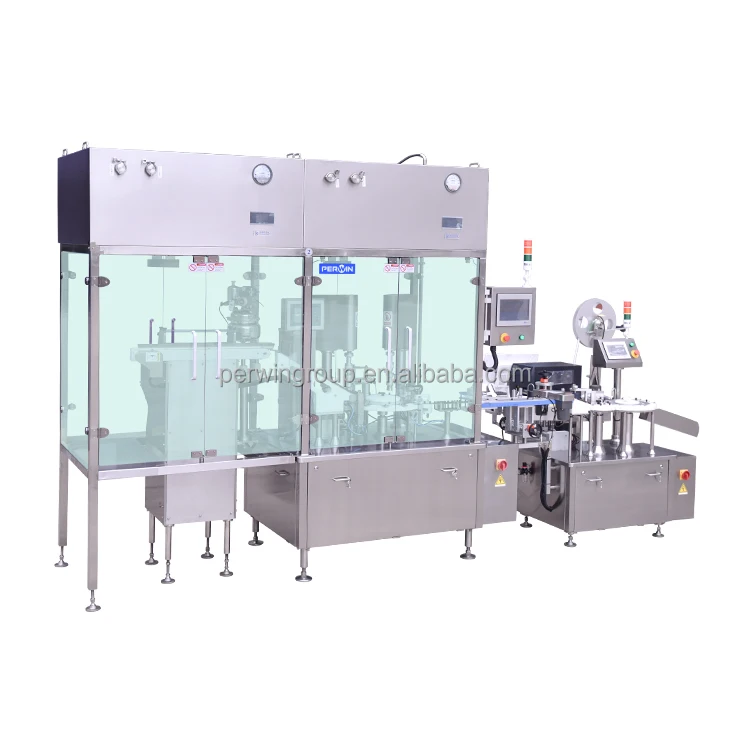

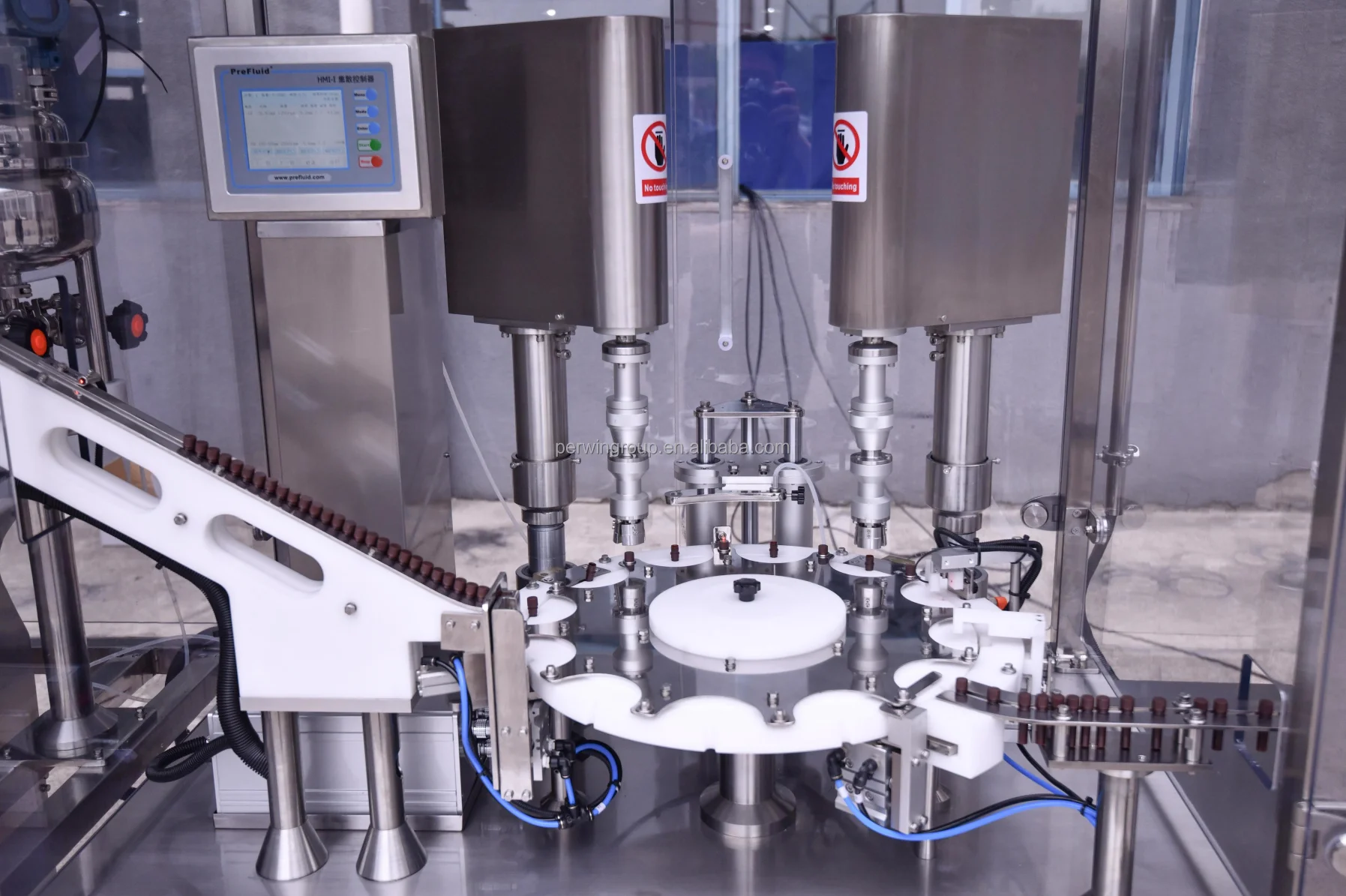

Tube De-capping filling capping and labeling machine for Nucleic Acid Assay IVD kit

This filling line was newly designed by our own company with automatic bottle unscrambler, de-capping, peristaltic pump filling, cap arranging mechanism, automatic capping mechanism and vertical positioning labeling machine. This machine stable running speed is around 20~30pcs/min. It is specially designed for filling 100ul, 320ul, 1000ul and 1200ul round vial with flat bottom.
Tube De-capping Filling Capping and Labeling Machine for Nucleic Acid Assay IVD Kit
FEATURES AT A GLANCE
COMPACT DESIGN
INTELLIGENT
FULLY AUTOMATED
HEPA PROTECTED FILLING AREA
EASY TO OPERATE
ENGLISH HMI



Tube De-capping Filling Capping and Labeling Machine for Nucleic Acid Assay IVD Kit
PRODUCT SPECIFICATIONS
No
Item
Description
1
Vial sorting method
A lifting type bottle unscramble method, combined with the design of the conveying method, hanging bottle out and bottle feeding.(No vibrating.)
2
Tube entering method
Tube entering into a track connected with filling machine star wheel
3
Filling method
1 set of Prefluid peristaltic pump
4
Filling accuracy
≦±1~3%
5
De-capping method
The cam-driven mechanical arm automatically de-capping, driven by servo motor
6
Capping method
The cam-driven mechanical arm automatically take the cap and capping
7
Torque control
Servo technology control, adjust the torque value
8
Connection with labeling machine
A set of clamping and conveying mechanism
9
Labeling method
Vertical positioning labeling machine, labeling accuracy is ±0.5mm
10
Production capacity
20~25pcs/min
11
Vial specification
One size of vial and cap. Filling volume is different
12
Printer
Toshiba or Zebra thermal transfer printer
13
Control method
Whole line PLC intelligent linkage, touch screen control, counting function
14
Power
Single phase: 110V or 220V; Three phase 208V or 480V
15
Compressed air
0.4~0.8Mpa
PRODUCT CONFIGURATION
Tube De-capping Filling Capping and Labeling Machine for Nucleic Acid Assay IVD Kit

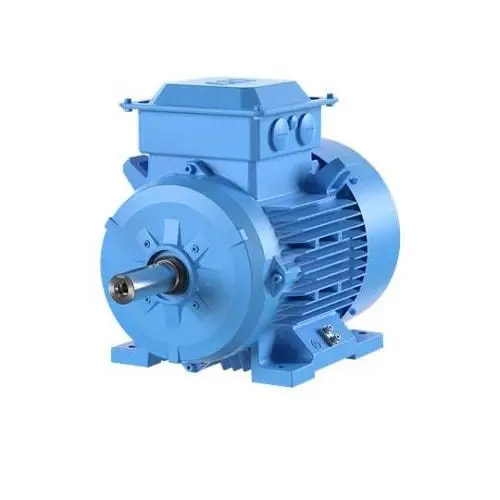

Imported ABB main motor
Tube De-capping Filling Capping and Labeling Machine for Nucleic Acid Assay IVD Kit

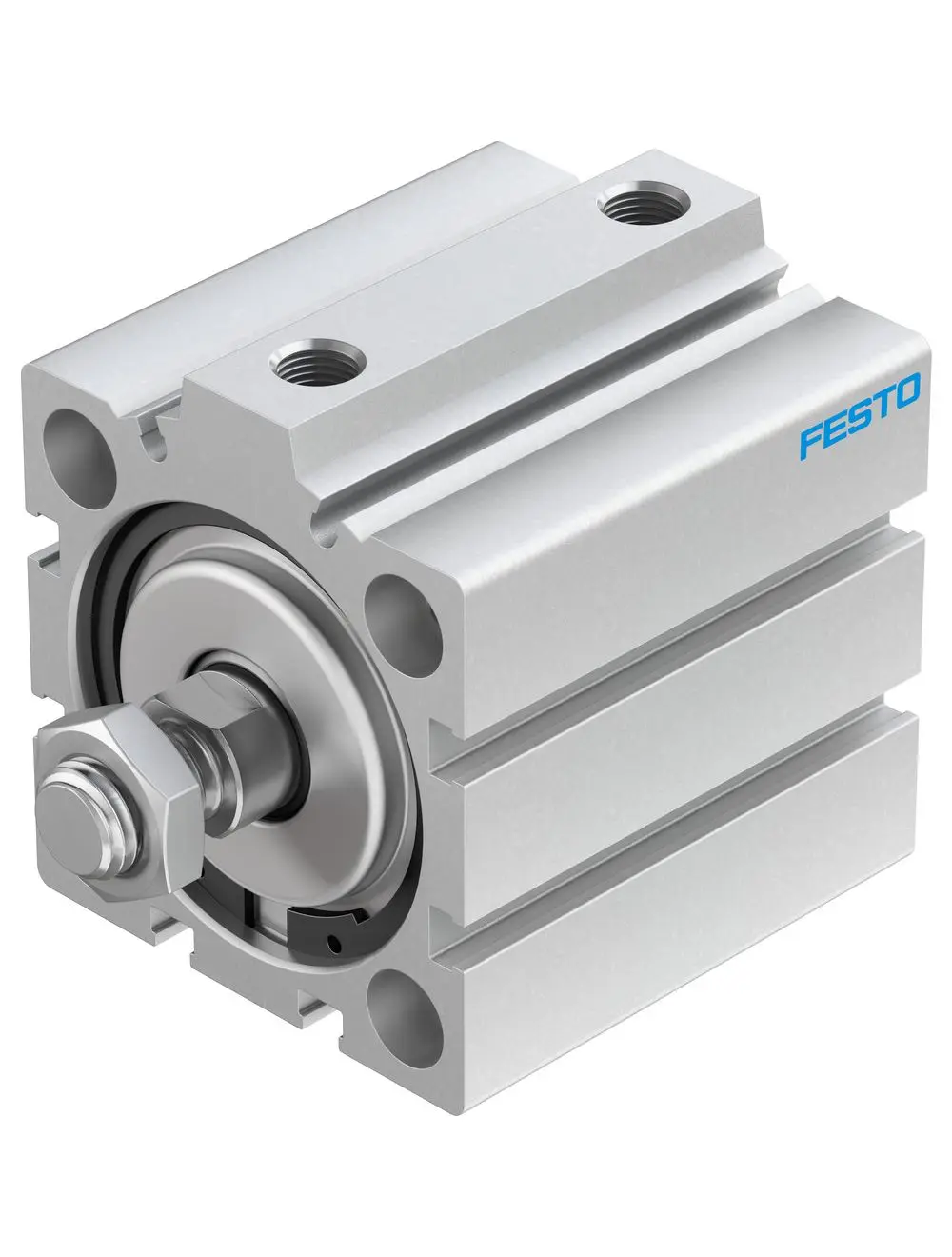

Imported FESTO air cylinder
Tube De-capping Filling Capping and Labeling Machine for Nucleic Acid Assay IVD Kit

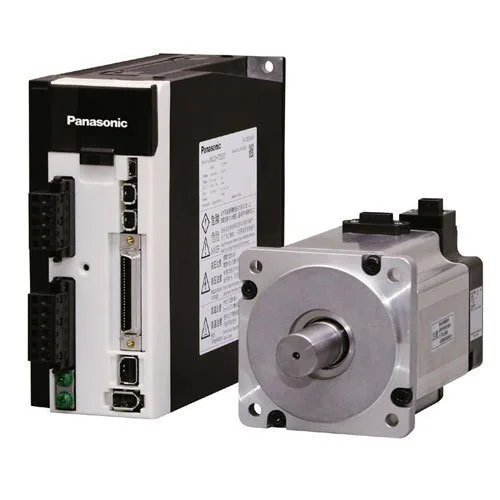

Imported Panasonic Servo motor
Successful Project
Tube De-capping Filling Capping and Labeling Machine for Nucleic Acid Assay IVD Kit
Project for British customer
Tube De-capping Filling Capping and Labeling Machine for Nucleic Acid Assay IVD Kit
Project for Spanish customer
Tube De-capping Filling Capping and Labeling Machine for Nucleic Acid Assay IVD Kit
Project for Australian customer
SIMILAR PRODUCTS

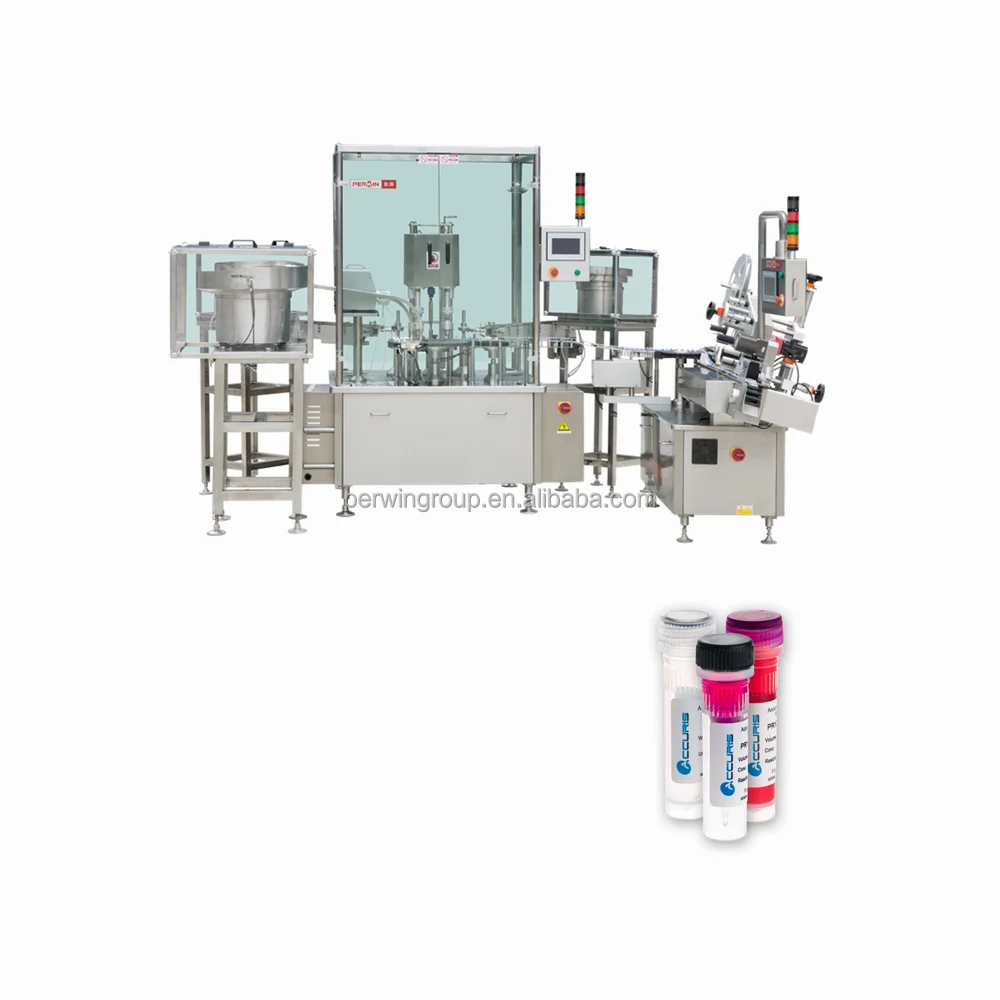

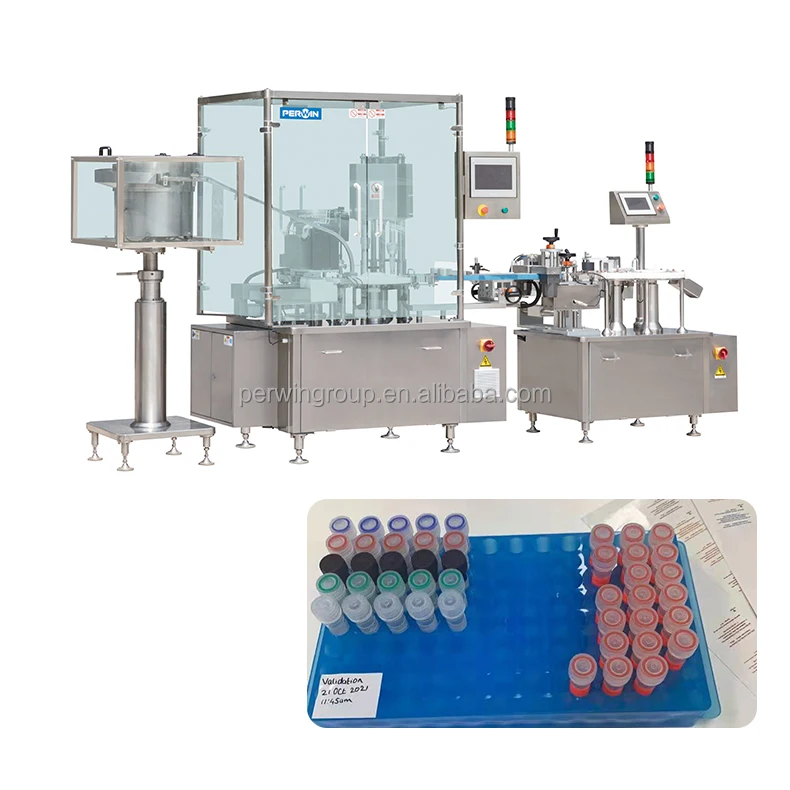

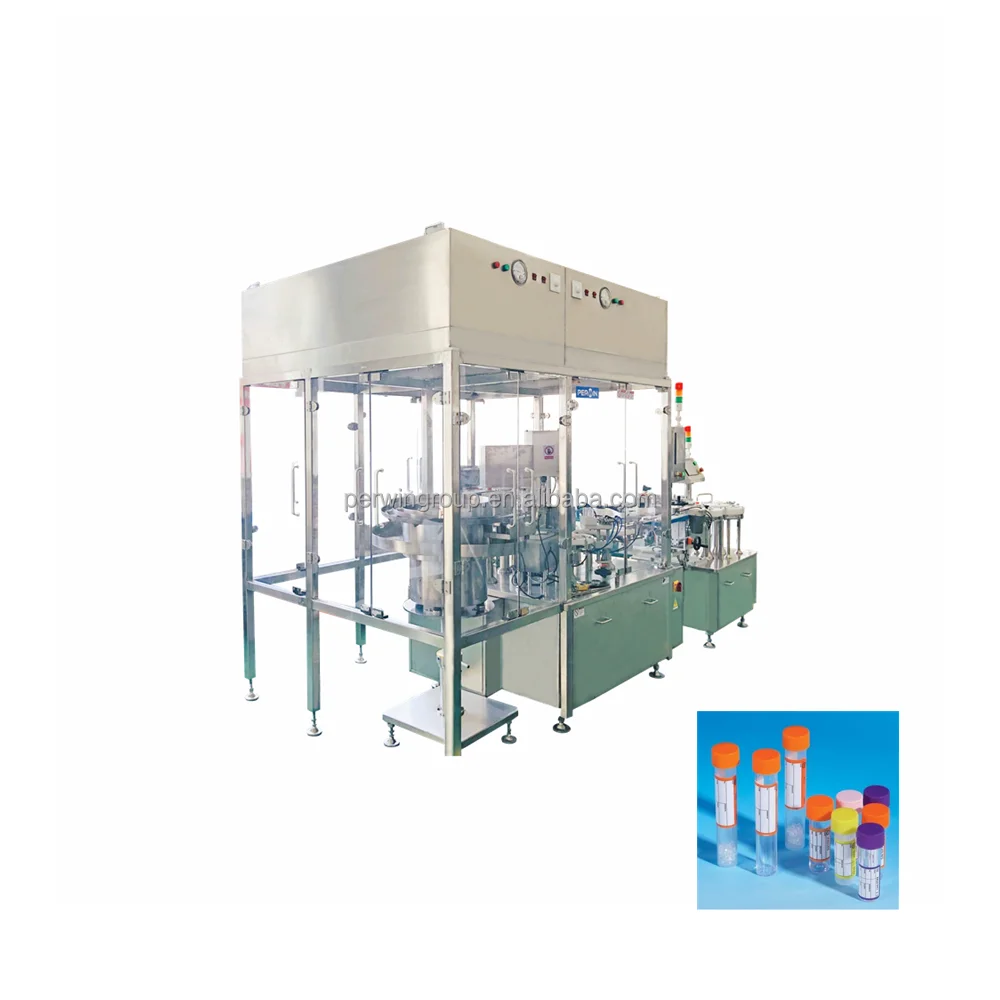

Tube De-capping Filling Capping and Labeling Machine for Nucleic Acid Assay IVD Kit
Tube De-capping Filling Capping and Labeling Machine for Nucleic Acid Assay IVD Kit
Tube De-capping Filling Capping and Labeling Machine for Nucleic Acid Assay IVD Kit
FAQ
1. Products advantages
Compared to Chinese counterparts: Stronger R&D team,; complete after-sales service system; stronger customization ability.
Compared with European and American counterparts: shorter delivery time; Lower prices for products with the same configuration and output; at the same price, our products have higher automation and intelligence; Lower after-sale maintenance costs.
2. After sell service
Free spare parts for the first year in use(Except for intentional damage). Online support for machine installation ,operation and maintainance. Engineer overseas on-site service. Maintenance reminder service every 3 months. 7/24 hours after-sales online service. All sets of docs for IQ, OQ, PQ, DQ etc.
3. Communication advantage Equipment operation interface in English. Equipment instruction manuals and other docs all in English. Online service and on-site service using English. Email communication in English. After-sales service is not affected by time zone. After-sales staff telephone is open 24 hours a day.
4. Successful cases Long-term cooperation with Roche. Based on the first pleasant cooperation, a customer purchased 12 production lines at a time for a second purchase.
5. Company belief Quality makes future.
